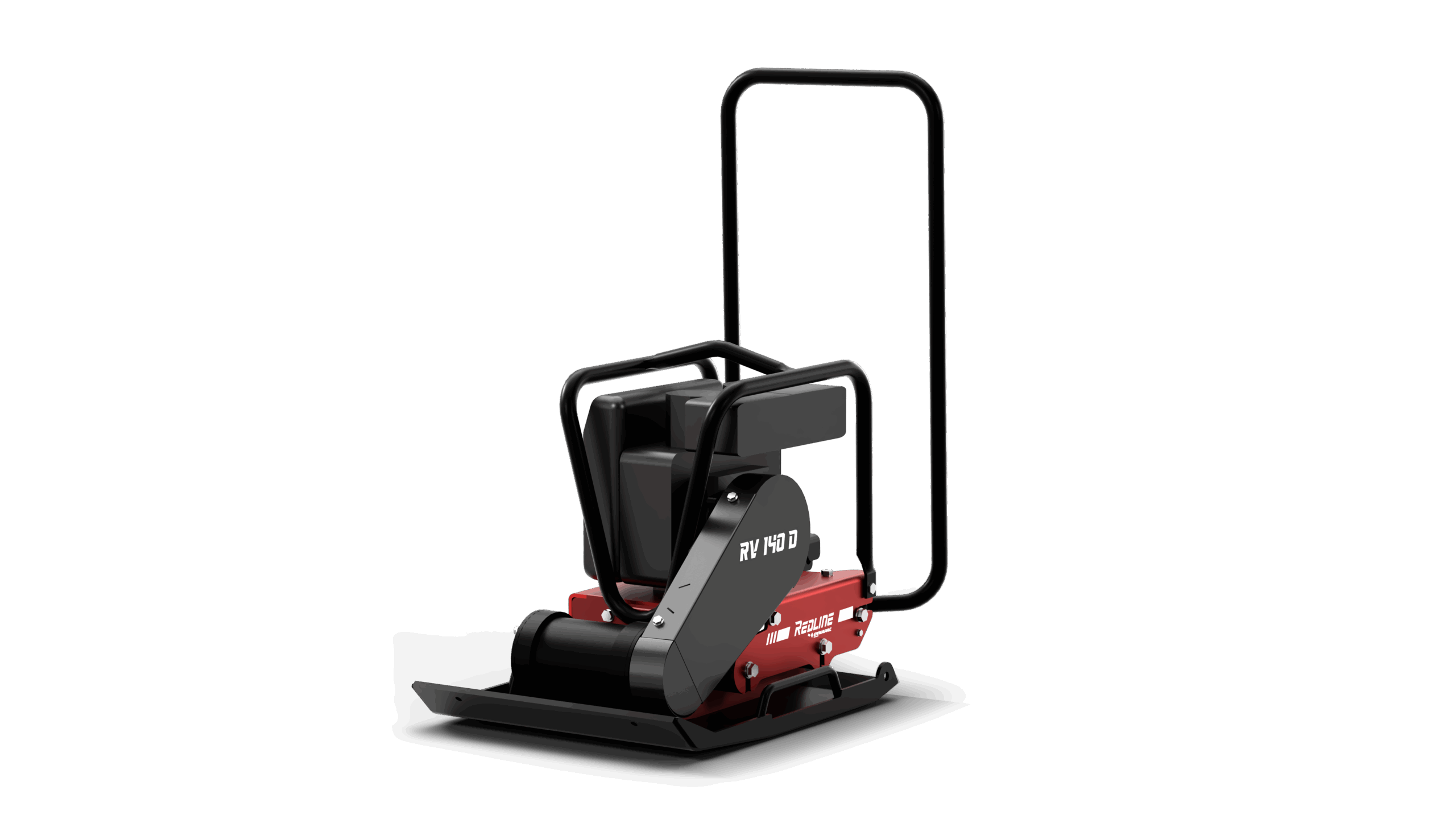

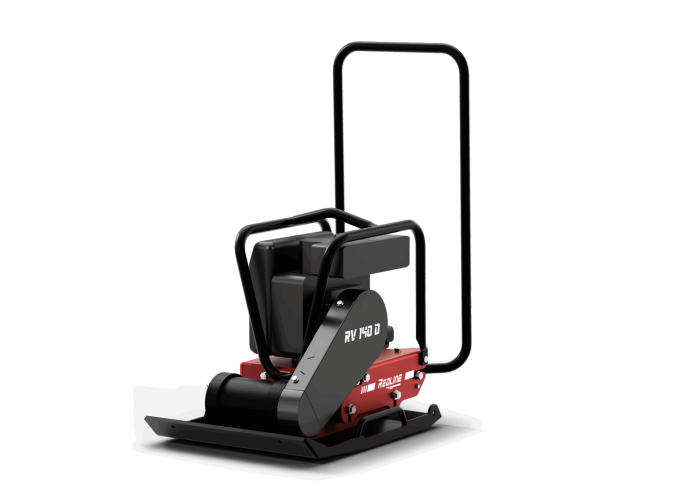

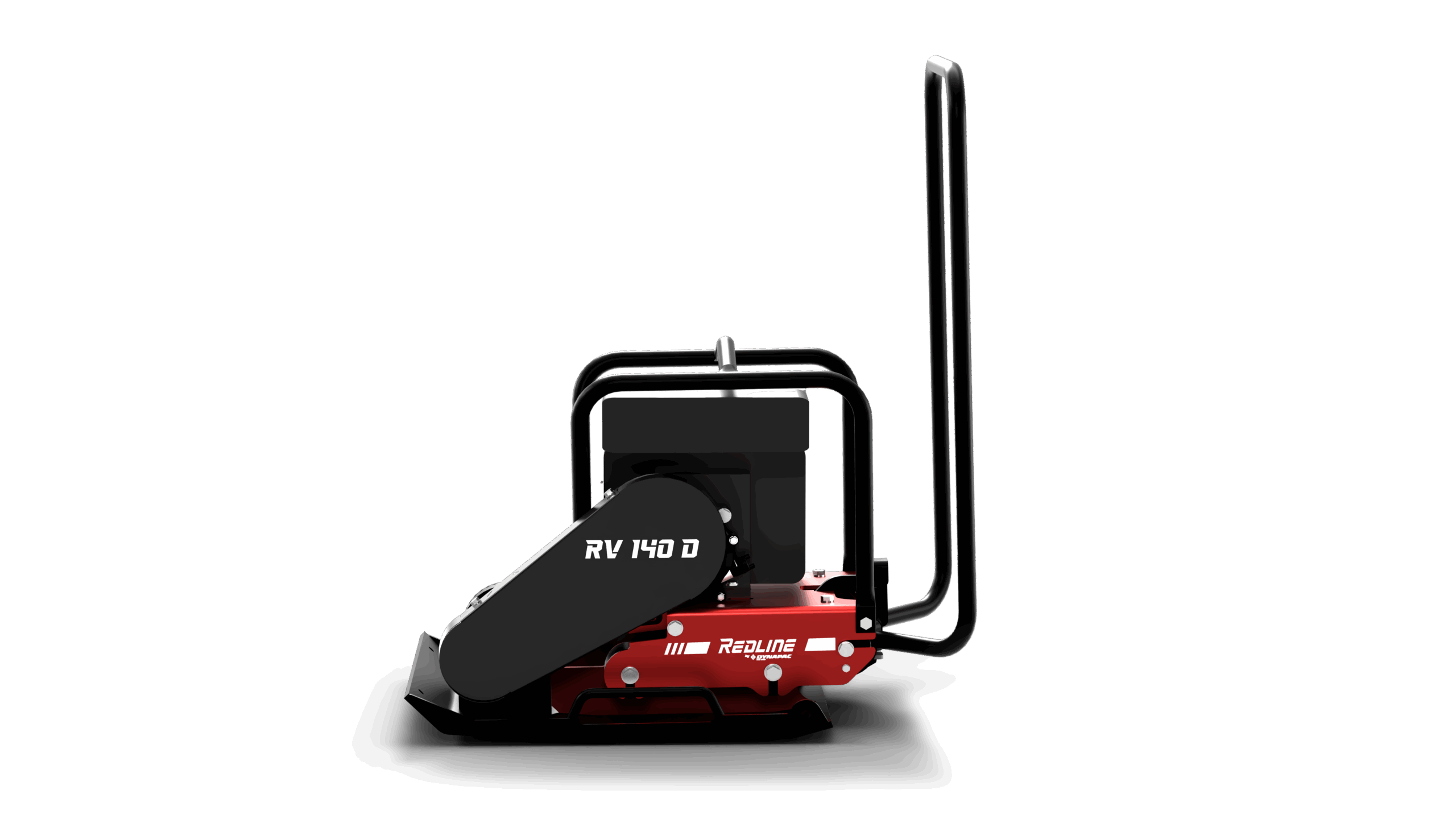

REDLINE RV140D

Forward Vibratory Plates

137 kg

20 kN

500 mm

Compact Design

All around protection cage

Forged plates provide extra life to the plate and provide protection

Foldable handle enables low height for transportation

Transport wheels for easy transport and marching

Automatic Engine Shutdown at low oil level Extra protection to the machine with petrol engine

The engine and engine base are properly damped and well-protected from vibration

Specifications

Operating Weight

137 kg

Operating Width

500 mm

Maximum Vibration Frequency

93 hz

Maximum Centrifugal Force

20 kN

Maximum Forward Speed

22 m/min

Engine Manufacturer

Greaves

Engine type

1520

Engine Power @ 3000 rpm

3.72 kW

Fuel Type

Diesel

Features & Benefits

Standard Features

  • Foldable steering handle with vibration isolation

  • Highly wear resistance wear plate

  • All-round protection for V-belt

  • Protection frame for the power pack

  • Carrying handles

  • One point lift

  • Puncture-proof transport wheels

Optional Feature

  • Block paving mat
